Function:
ASZ rope tension tester can be used in various occasions.
such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, ropeway industry, construction industry, playground, tunnel construction, fishery.
main research institutions and teaching institutions, testing institutions And other occasions involving the tension of ropes and wire ropes..
Features about Wire Rope Cable Tension Meter:
1. It has a tensile force for the rope structure and can be measured directly without being disassembled.
2. It is light in weight, simple in structure, easy to operate, and suitable for any situation.
3, with stable performance, high measurement accuracy, with automatic system compensation.
When the specification of the tested rope is the same number of rope tension tester ropes, the measurement accuracy can reach an error of 2% or less within the rated measurement range.
4. It has a wider range of measurements, with 15 rope diameter measurement functions.
5. Scope of application: applied to flexible, stretched ropes, such as various wire ropes, high-strength ropes, ECT
6. Accuracy: 2 to 6% of maximum function (depending on the form and function of the rope).
7. Rope diameter: ¢6~¢40 mm.

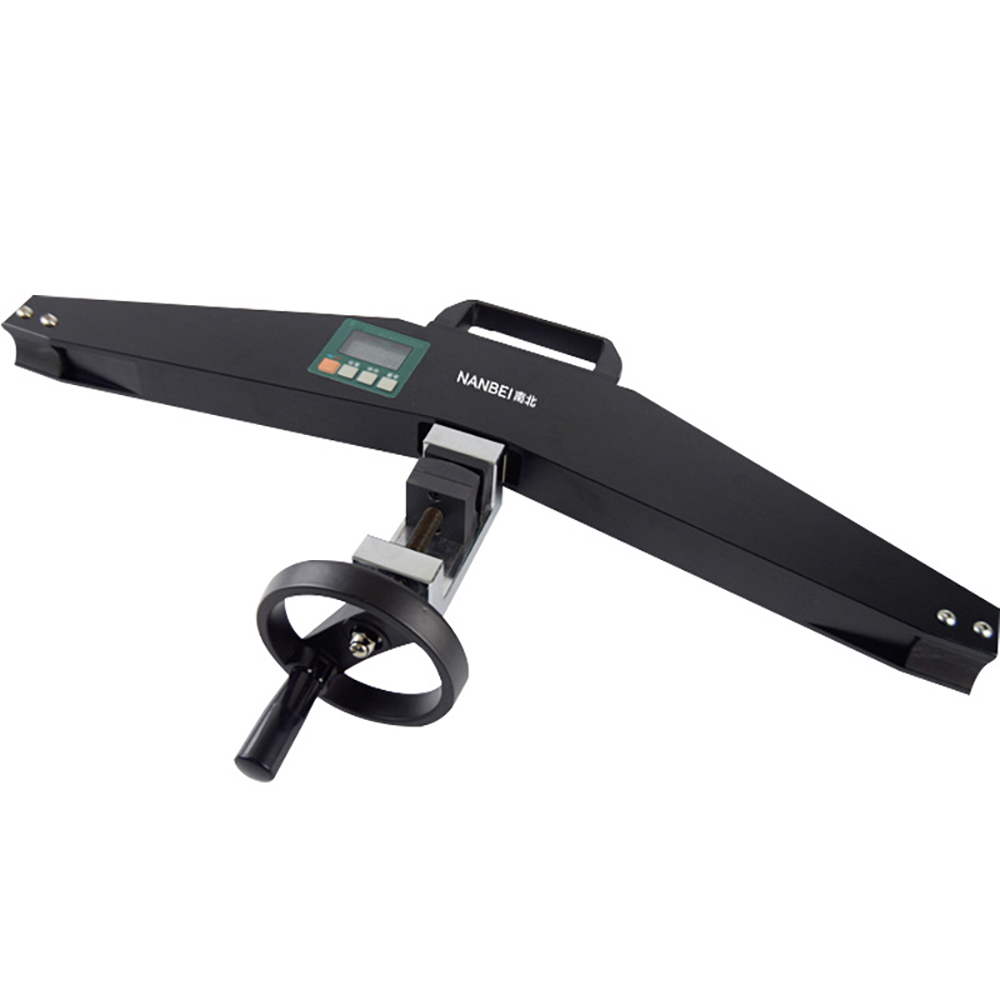

Physical Form and Structure:

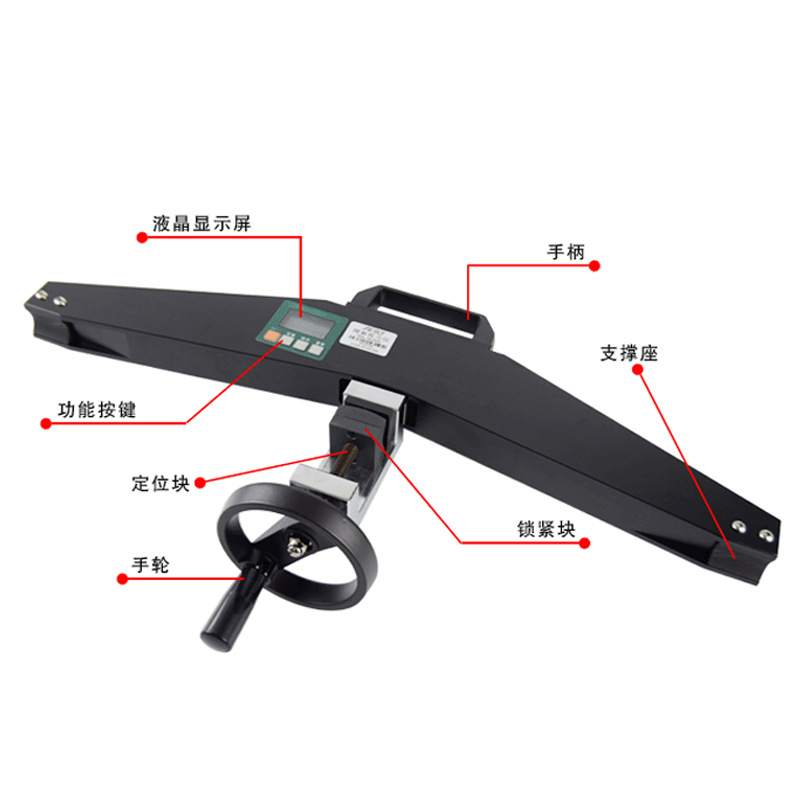

| 1. function keys | 2. LCD screen | 3. handle | 4. Rs232 9-hole socket and power socket |
| 5. support seat | 6. positioning block | 7. locking block | 8. hand wheel |
Specification parameters of model:
Tension Meter，Wire Rope Cable Tension Meter，Digital Wire Rope Cable Tension Meter：
| model | ASZ-20 | ASZ-50 | ASZ-100 | ASZ-200 |
| maximum load value (KN) | 20 | 50 | 100 | 200 |
| Divided load value (KN) | 0.01 | 0.01 | 0.1 | 0.1 |
| output connector | Rs232 9-hole socket | |||
| power | rechargeable battery charger (charging voltage 100V～240V) | |||
| operating temperature | 5℃～35℃ | |||
| transport temperature | -10℃～60℃ | |||
| relative humidity | 15%～80%RH | |||
| operation | No vibration focus and corrosive media around | |||
| net weight | 5kg | |||
| dimensions | 650×375×100mm | |||

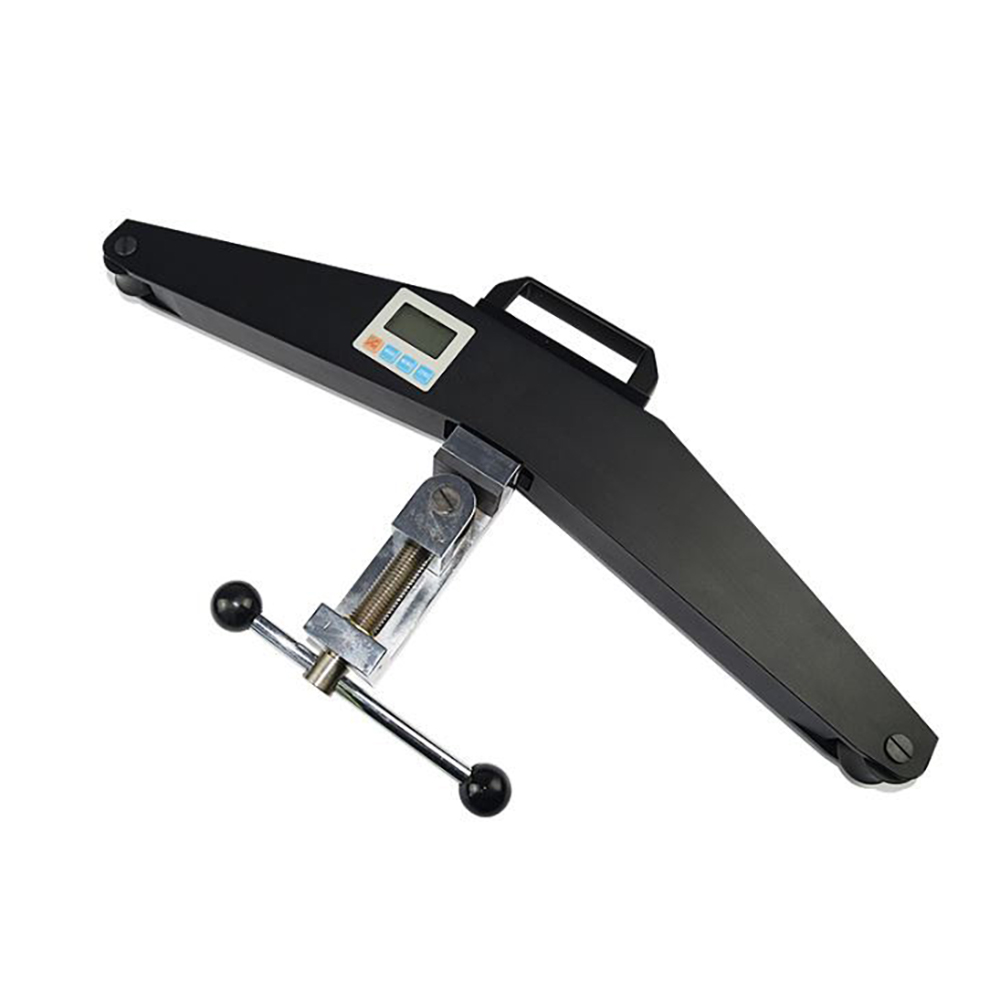

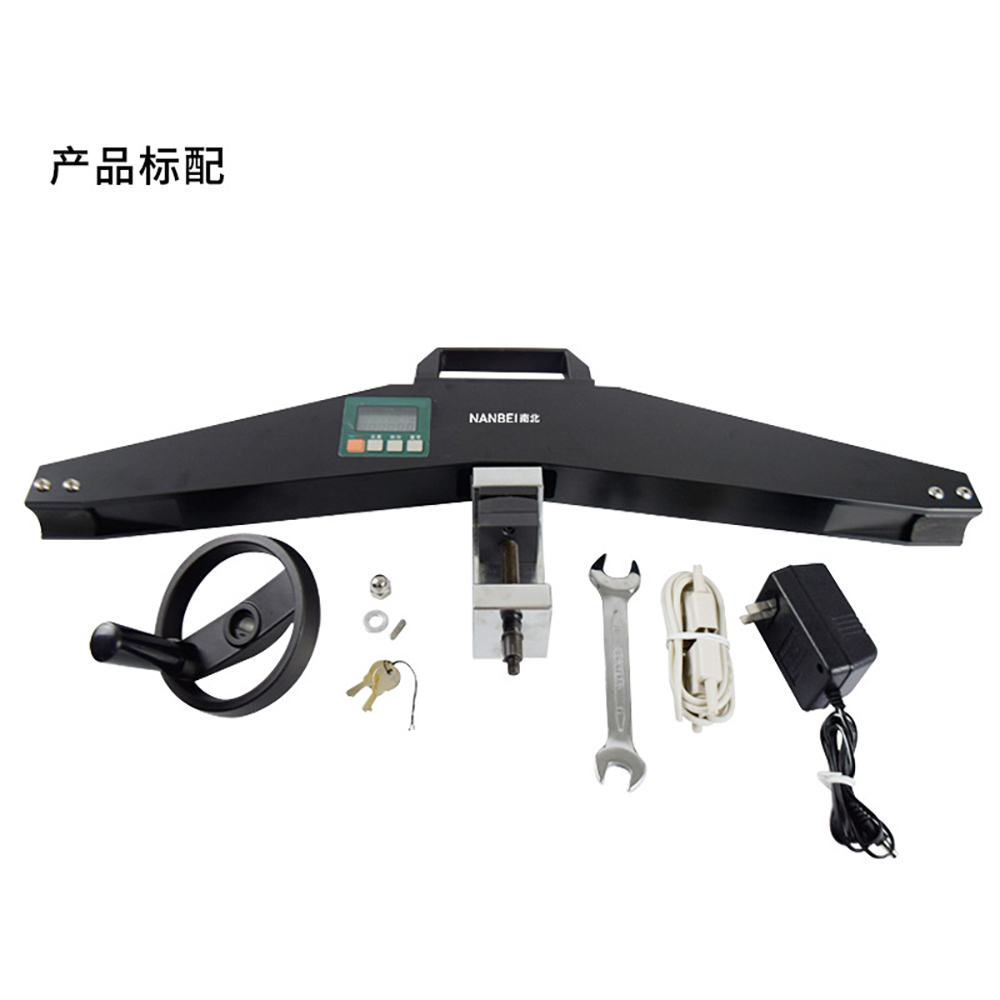

Picture:
Select the rope number ranks according to the diameter of tested ropes.
Table of Corresponding Rope Number Rank Selection Standard:
| Measurement range diameter rank | 20KN | 50KN | 100KN | 200KN |
| 01 | 8mm | 12mm | 16mm | 20mm |
| 02 | 10mm | 16mm | 22mm | 24mm |
| 03 | 12mm | 22mm | 26mm | 30mm |
| 04 | 16mm | 26mm | 30mm | 36mm |
| 05 | 20mm | 30mm | 36mm | 40mm |
Special ropes can be correspondingly and physically calibrated according to clients’ requirements.
Note: In testing, put the top point of the rope right towards the positioned block, and press tight the tested rope onto the positioning block.
