Special Features
The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
Easy online mounting with 2 screws
Tension meter DX2S is available with custom-built configurations and special calibrations
Note: Tension meter DX2S do not include a filament guide and material thickness compensator.
Standard Features
Everything in operator’s view:
– the guide rollers
– the measured material
– the readings
Ball-bearing mounted, V-grooved guide rollers
Each instrument is individually calibrated for highest accuracy
41 mm Ø scale

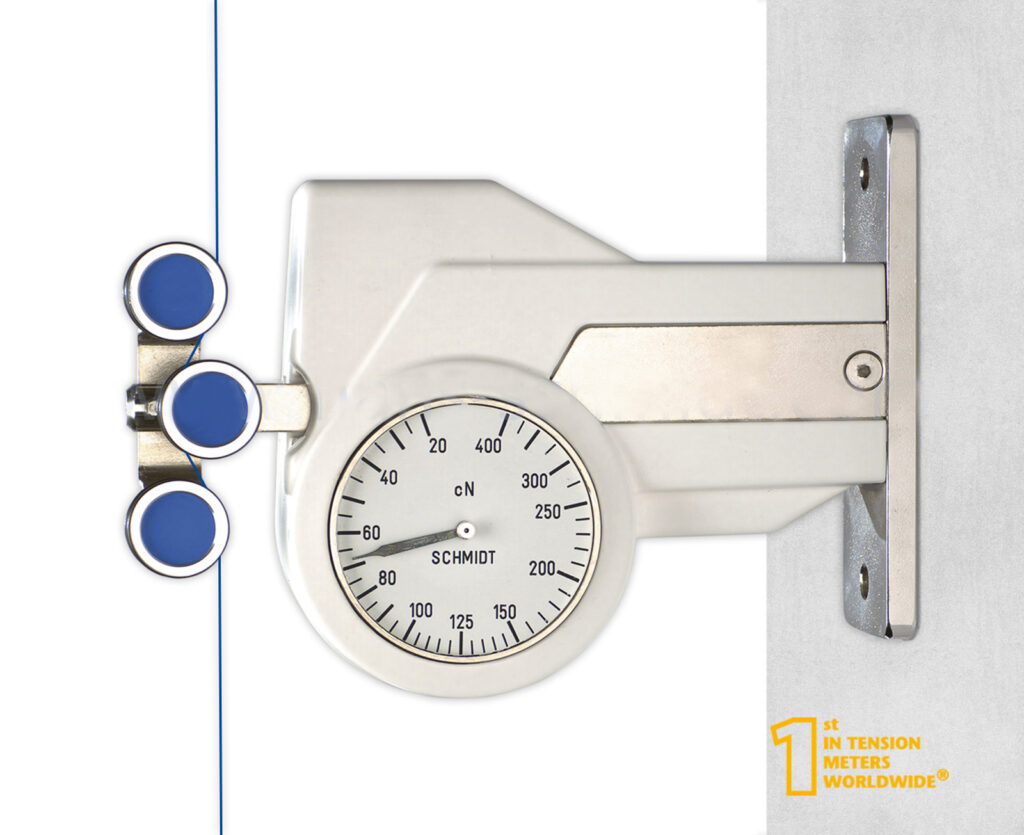

Tension meter with rugged aluminium housing
Certificate of Compliance with the order 2.1 according EN 10204 is included
Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report
Available Models
| Model | Tension Range | Measuring Head Width* | SCHMIDT Calibration Material** |
| DX2S-50 | 10 – 50 cN | 54 mm | PA: 0.12 mm Ø |
| DX2S-120 | 20 – 120 cN | 54 mm | PA: 0.12 mm Ø |
| DX2S-200 | 20 – 200 cN | 54 mm | PA: 0.12 mm Ø |
| DX2S-400 | 20 – 400 cN | 54 mm | PA: 0.20 mm Ø |
| DX2S-1000 | 50 – 1000 cN | 54 mm | PA: 0.30 mm Ø |
| DX2S-2000 | 200 – 2000 cN | 116 mm | PA: 0.50 mm Ø |
| DX2S-5000 | 400 – 5000 cN | 116 mm | PA: 0.80 mm Ø |
| DX2S-8000 | 1000 – 8000 cN | 116 mm | PA: 1.00 mm Ø |
| DX2S-10K | 2.5 – 10 daN | 116 mm | PA: 1.00 mm Ø |
| DX2S-20K | 5 – 20 daN | 216 mm | PA: 1.50 mm Ø |
Other tension ranges, measuring head widths available on request.
Other units of measure available – g or kg.
* Outer distance between outside guide rollers
