Special Features

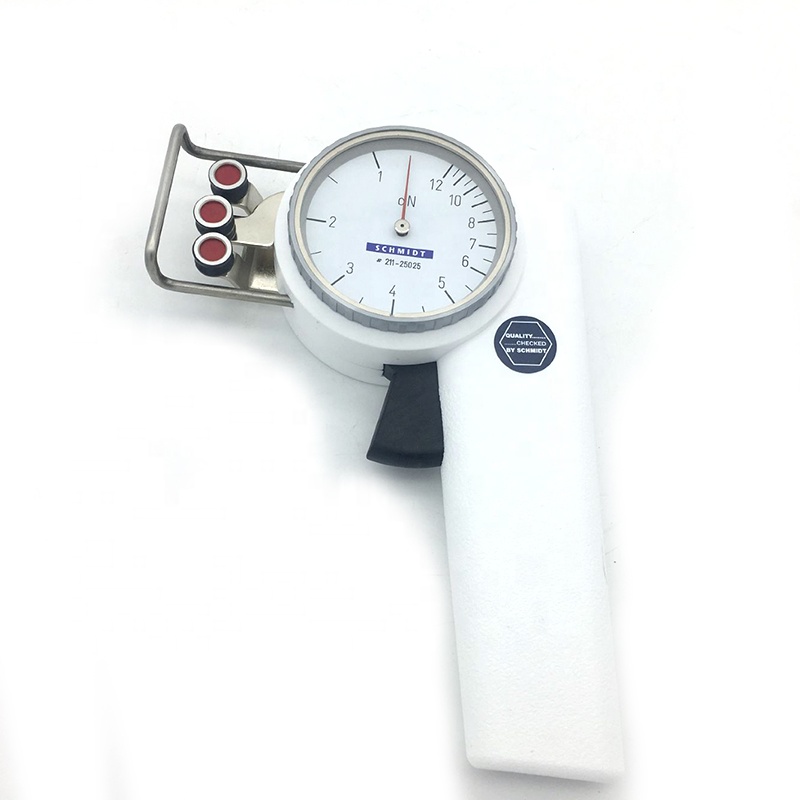

The analog display of tension meter ZF2 shows changing and fluctuating tensions fast and enables an optimal process adjustment
Filament guide and roller shifting mechanism ensure easy acquisition of the running material
Large, easy to read scale (54 mm Ø)
Light weight
Standard Features
Everything in operator’s view:
– the guide rollers
– the measured material
– the readings
Ball-bearing mounted, V-grooved guide rollers
Each instrument is individually calibrated for highest accuracy
Housing made of high-strength plastic

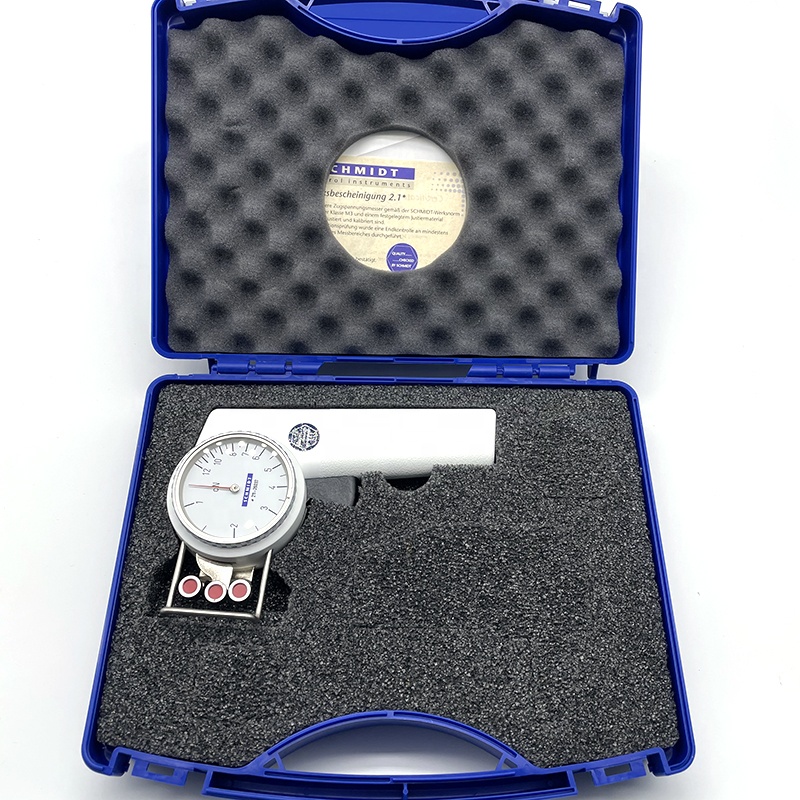

Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report
Available Models
| Model | Tension Range | Measuring Head Width* | SCHMIDT Calibration Material** |
| ZF2-5 | 1 – 5 cN | 43 mm | thread: 25 tex |
| ZF2-10 | 1 – 10 cN | 43 mm | thread: 25 tex |
| ZF2-12 | 1 – 12 cN | 43 mm | thread: 25 tex |
| ZF2-20 | 2 – 20 cN | 43 mm | thread: 25 tex |
| ZF2-30 | 3 – 30 cN | 43 mm | PA: 0.12 mm Ø |
| ZF2-50 | 5 – 50 cN | 43 mm | PA: 0.12 mm Ø |
| ZF2-100 | 10 – 100 cN | 43 mm | PA: 0.12 mm Ø |
Other tension ranges available on request.
Other units of measure available, such as g.
* Width of filament guide
** Suitable for 95 % of applications – PA = Polyamide Monofilament
